Ricoh's production range is made to work with a massive variety of stock. Imagine all the coated, coloured, textured, and synthetic possibilities ready and waiting to amaze your customers.
Print professional quality books, newsletters and brochures with uninterrupted productivity
Short-run black and white printing comes fast and affordably. The Pro 8300S gives educational print operations and corporate print rooms more options.
Impressive printing, added flexibility

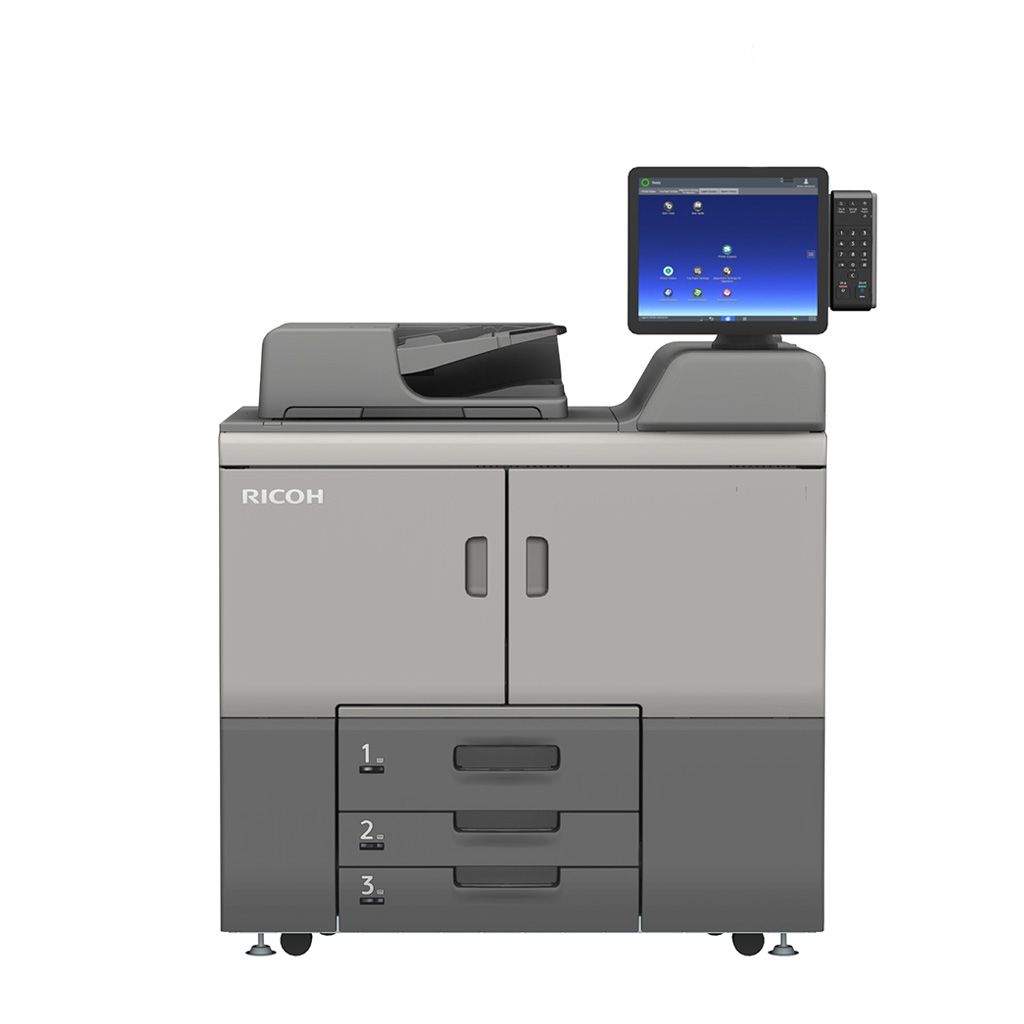

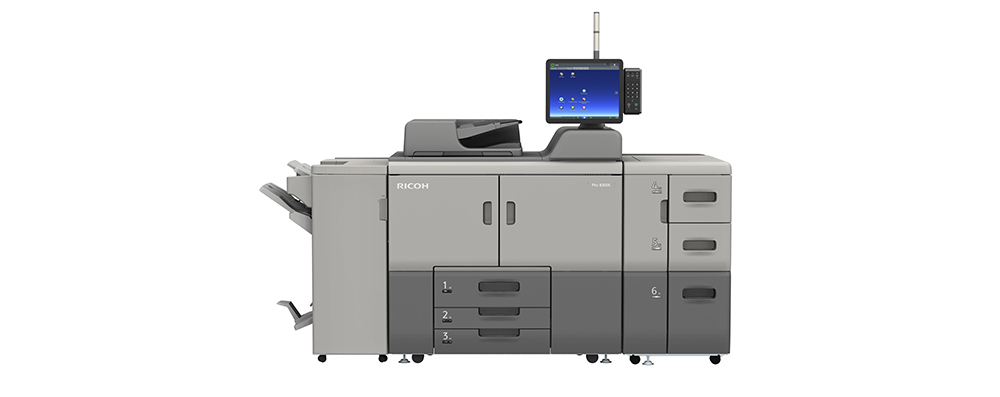

With the Pro 8300S, both quality and quantity are delivered without sacrifice. Print on lightweight to heavyweight stock, as well as NCR, synthetic media and oversized sheets. Produce crisp documents with near-offset print quality. More time is saved with straight-forward operations, including pre-set print configurations for common print tasks and a paper library.
- Continuous productivity
Designed for continuous production, even when replenishing toner or paper - Do it yourself
Handle maintenance issues in house with Trained Customer Replaceable Units (TCRUs) - Fits almost anywhere
Small footprint minimises installation space - Security features
Protect sensitive information with User Authentication to restrict access to specific jobs - Scan and send
Scan colour jobs and share them straight from the device for fast review and approval
The perfect fit
With the price of floor space continuing to climb, the small footprint and downsized finisher of the Ricoh Pro 8300S helps to meet the needs of those facing constraints on space and budget. The small size belies the huge capability of the Pro 8300S with its ability to produce enhanced image quality at high speed, along with improved usability and higher productivity, it offers the reliability you need each and every day.
Specifications
- 功用
- Copy, print, scan
- 色彩
- No
- 打印機控制器 - 標準
- GWNX
- 打印機控制器 - 可選
- Fiery EB-35 controller
- 硬碟
- 640 GB (320 GB x 2)
- 文件伺服器
- Document server HDD capacity
640 GB (320 GB x 2)
Maximum stored documents
3,000 documents
Maximum pages per document
Standard
5,000—copy
20,000—printer
15,000—document server
2,000—other
Expansion pattern A
5,000—copy
20,000—printer
20,000—document server
2,000—other
Expansion pattern B
2,000—copy
2,000—printer
2,000—document server
2,000—other
Maximum pages of all stored documents
15,000—standard
30,000—expansion pattern A
50,000—expansion pattern B - CPU
- Intel Atom BayTrail-I 1.91 GHz
- 記憶體 - 標準
- 2 GB
- 操作板面
- 17" touch panel
- 實體尺寸（長闊高）—大型機
- 1,141 x 900 x 1,500 mm
- 實體尺寸（長闊高）—其他
- 1,141 x 900 x 1,020 mm—without ADF
591 x 520 x 175 mm—220-sheet SPDF
540 x 730 x 1,000 mm—5,000-sheet LCT RT5130 (A4)
865 x 730 x 1,000 mm—4,400-sheet LCT RT5110 (A3)
1,054 x 730 x 1,000 mm—4,400-sheet Vacuum-Feed LCT RT5120
690 x 561 x 210 mm—550-sheet Multi-Bypass Tray BY5020
1,090 x 561 x 210 mm—Multi-Bypass Banner Tray Type S9, when attached to Multi-Bypass Tray BY5020
330 x 730 x 1,000 mm—Bridge Unit BU5010
490 x 530 x 175 mm—1,000-sheet A3 Tray Type TK5020
657 x 730 x 980 mm—3,000-sheet Finisher SR5090
657 x 730 x 980 mm—2,000-sheet Booklet Finisher SR5100
143 x 539 x 218 mm—Output Jogger Unit Type S11
1,113 x 730 x 1,490 mm—1,000-sheet Finisher SR5110
1,334 x 730 x 1,622 mm—1,000-sheet Finisher SR5110 with banner sheet option
1,113 x 730 x 1,490 mm—1,000-sheet Booklet Finisher SR5120
1,334 x 730 x 1,622 mm—1,000-sheet Booklet Finisher SR5120 with banner sheet option
1,115 x 591 x 555 mm—Trimmer Unit TR5050
740 x 730 x 1,290 mm—Cover Interposer CI5040
71 x 509 x 181 mm—Decurl Unit DU5070
470 x 730 x 1,000 mm—Multi-Folding Unit FD5020
400 x 600 x 480 mm—Shift Sort Tray SH5000
265 x 253 x 136 mm—RPIP Interface Box Type S3 - 重量—大型機
- 428 kg
- 重量—其他
- 14 kg or less—220-sheet SPDF
106 kg or less—5,000-sheet LCT RT5130 (A4)
185 kg or less—4,400-sheet LCT RT5110 (A3)
230 kg or less—4,400-sheet Vacuum-Feed LCT RT5120
20 kg or less—550-sheet Multi-Bypass Tray BY5020
3.5 kg or less—500-sheet Multi-Bypass Banner Tray Type S9
40 kg or less—Bridge Unit BU5010
11 kg or less—A3 Tray Type TK5020
135 kg or less—1,000-sheet Finisher SR5110
160 kg or less—1,000-sheet Booklet Finisher SR5120
38 kg or less—3,000-sheet Finisher SR5090
53 kg or less—2,000-sheet Finisher SR5100
2 kg or less—Output Jogger Unit Type S11
75 kg—Trimmer Unit TR5050
50 kg—Cover Interposer CI5040
5 kg or less—Decurl Unit DU5070
92 kg or less—Multi-Folding Unit FD5020
11 kg or less—Shift Sort Tray SH5000
0.55 kg—RPIP Interface Box Type S3 - 最小空間要求
400 mm—left
200 mm—rear
620 mm—rear, for PM parts replacement
30 mm—right
555 mm—frontNote: PM parts maintenance tasks require additional rear clearance.
- 平均月用打印量
- 95,000 prints
- 平均打印量聲明
- 75,000–300,000 prints—recommended document volume
- 最大月用打印量
- 1,000,000 prints
- 機器壽命
- 60,000,000 prints or 5 years, whichever comes first
- 佔空比
- 2,900,000 prints per month
- 消耗品量
82,000 prints per toner bottle—two bottles can be installed
2,400,000 images per drum unit
860,000 prints per developer bag
1,200,000 sheets per waste toner bottle
Note: Toner yields are measured with the A4 LEF/6% test chart, and will vary depending on the original document, image sizes and type, and the device operating conditions.
5,000 staples per Type X cartridge for finisher SR5110/5120—normal staple
5,000 staples per Type V cartridge for finisher SR5090/5100—normal staple
5,000 staples per Type U cartridge for finisher SR5120—saddle stitch staple
2,000 staples per Type W cartridge for finisher SR5100—saddle stitch staple5 cartridges per Type X refill for finisher SR5110/5120—normal staple
3 cartridges per Type V refill for finisher SR5090/5100—normal staple
2 cartridges per Type T refill for finisher SR5120—saddle stitch staple
4 cartridges per Type W refill for finisher SR5100—saddle stitch staple
- 標準輸入量（張）
- 3,300
- 最大輸入量（張）
- 12,600
- 標準輸出量（張）
- Not available
- 最大輸出量（張）
- 3,250
- 紙張輸入配置 - 標準
- 2,200-sheet tandem paper input tray (2 x 1,100 sheets), 2 x 550-sheet paper input trays, 220-sheet SPDF, duplex unit
- 紙張輸入配置 - 可選
- LCT RT5130 (A4), LCT RT5110 (A3), Vacuum-Feed LCT RT5120, Multi-Bypass Tray BY5020, Multi-Bypass Banner Sheet Tray Type S9, Vacuum-Feed Banner Sheet Tray Type S9, Bridge Unit BU5010, A3 Tray Unit TK5020
- 紙張輸出配置 - 標準
- Not available
- 紙張輸出配置 - 可選
- Shift Sort Tray SH5000, Finisher SR5090, Booklet Finisher SR5100, Punch Unit PU3090, Output Jogger Unit Type S11, Booklet Finisher SR5120, Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, Cover Interposer CI5040, SR5000 Series Output Tray For Banner Sheet Type S6, Decurl Unit DU5070, Multi-Folding Unit FD5020
- 紙張輸出配置 - 第三方
- Plockmatic PBM 350e/500e
- 支援媒體
Tray 1
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, back-copied paperTrays 2 and 3
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, transparency, back-copied paperBypass tray BY5020
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, back-copied paper, envelopesLCT RT5130
Tray 4—Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, back-copied paper
Tray 5—Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label paper, back-copied paper
Tray 6—Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, transparency, back-copied paperLCT RT5110
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label, back-copied paper, glossy paper, matte paper, envelopesVacuum-Feed LCT RT5120
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label, back-copied paper, glossy paper, matte paper, envelopes, NCR paperCover Interposer Tray CI5040
Plain paper, recycled paper, colour paper, letterhead, pre-printed paper, pre punched paper, bond paper, cardstock, OHP, tab stock, transparency, label, back-copied paper, glossy paper, matte paper- 最大紙張尺寸
- 13" x 19.2"
- 媒體量
- 52–350
- 無限紙張供應
- Supported
- 介面 - 標準
GWNX controller
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type A—2 ports at rear of device, 4 on operation panel
USB 2.0 Type B—1 port at rear of device
SD card slot—on operation panelFiery EB-35 controller
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Type A—4 ports at rear of device
USB 3.0—2 ports at rear of device, 3 ports on Fiery Quick Touch panel- 介面 - 可選
GWNX controller
IEEE 802.11b/g/n—for operation panel
IEEE 802.11a/b/g/n—for controller boardFiery EB-35 controller
Not available- 網路協議 - 標準
GWNX controller
TCP/IP (IPv4, IPv6)Fiery EB-35 controller
TCP/IP (IPv4, IPv6)- MIB 支援
GWNX controller
Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIBPrivate
Ricoh original MIBFiery EB-35 controller
Not available
- 影印速度
96 cpm
- 首次影印時間
- 6.3 seconds
- 影印解像度
- 2,400 x 4,800 dpi—VCSEL
1,200 x 1,200 dpi—copy - 原稿類型
- Book, sheet, object
- 原稿尺寸
- A3—maximum
A5—minimum - 影印尺寸
- A5–A3, up to 323 x 480 mm
- 全影像影印
- 93% and centering
- 數量選擇
- 1–9,999
- 縮放範圍
- 25%–400%, in 1% steps
- 放大比例
- 115%, 122%, 141%, 200%, 400%
- 縮放比例
- 93%, 82%, 75%, 71%, 65%, 50%, 25%
- 影像濃度調節
- Automatic Density Adjustment; Manual—7 levels
- 影像濃度調節
- Automatic density selection, 9 levels of manual adjustment
- 原稿類型設定
- Text, Text/photo, Photo, Map, Pale, Generation, Inkjet, Highlight pen
- 雙面影印
- Simplex to duplex, duplex to duplex, book to duplex, front and back to duplex
- 書本影印
- Booklet, magazine
- 連續影印
- Book to simplex, book to duplex, front and back to duplex
- 合併影印
2, 4, or 8 pages into 1 simplex sheet
4, 8, or 16 pages into 1 duplex sheet- 急件插入影印
- Supported
- 紙庫
- Supported
- 紙張註冊
- Mechanical
- 使用者編碼
- 1,000 user codes, 8 digits per code
- 封面頁
- Simplex or duplex copy—front, front and back, Blank
- 插頁
- Copy or blank
- 分章
- Up to 100 chapters
- 紙張目的地
- Selectable from 3 trays, up to 100 positions
- 釘裝
- Up to 4 positions—with finisher
- 打孔
- NA 2/3 switchable hole punch, EU 2/4 switchable hole punch, Scandinavian 4 holes punch—with finisher
- 邊界／消除調節
- Margin adjustment—in 1 mm steps
Erase edge—inside, outside, centre/border - 影像調節
- Sharp/soft—7 levels
Contrast—9 levels
Background density adjustment—9 levels - 戳記
Background numbering—not available
6 stamps—page numbering
5 stamps—date stamp
5 stamps—user stamp
8 stamps—preset stamp
Stamp text—supported- 影像旋轉
- Supported
- 其他影印功能
- Auto Magnification Select (AMS), Size magnification, Electronic sorting—with finisher
- 黑白列印速度
96 ppm
- 列印程序
- Single-drum dry electrostatic transfer system with internal transfer belt
- 列印技術
- 40-beam Vertical-Cavity Surface-Emitting Laser (VCSEL)
- 定影
- Oil-less belt-fusing method
- 列印解像度
- 2,400 x 4,800 dpi—VCSEL
1,200 x 1,200 dpi—print - 頁面描述語言
Standard
PCL 5e, PCL 6, PostScript 3 and PDF emulation, JPEG, TIFFOptional
Genuine Adobe PostScript 3 and PDF, Intelligent Printer Data Stream (IPDS), XPS- 雙面列印
- Standard
- 主機打印
- Host Print Transform (HPT), Genuine Intelligent Printer Data Stream (IPDS)—optional
- 信封列印
- Supported—Bypass tray BY5020, LCT RT5110, Vacuum-Feed LCT RT5120
- 最大列印範圍
- 320 x 700 mm
- Fiery控制器
EFI Fiery EB-35 print controller—optional
System version
Fiery FS300 ProConfiguration
ExternalPrinter driver languages
PostScript 3 (CPSI v3020 and APPE v4.4), PCL 6, PCL 5eResolution
1,200 dpi—2-bit
600 dpi—1-bitFonts
PCL
80PostScript 3
138 + 2MMFiery menu via operation panel
Supported2-character control panel
SupportedSupported file formats
PS, PDF, EPS, TIFF, PCL, PDF/VT, PPML, VPSVariable data printing (VDP)
PPML v3.0
Fiery FreeForm v1 and 2.1
PDF/VT-1 and PDF/VT-2Note: Creo VPS is available from EFI but not supported by Ricoh.
- 掃瞄速度
- 120 ipm—simplex
220 ipm—duplex - 掃瞄類型
- Black and white text/line art (default), black and white text, black and white text-photo, black and white photo, greyscale
Full colour text-photo, full colour photo, Auto Colour Selection - 掃瞄程序
- Lower side scanning
4-channel Charged Coupled Device (CCD) array image-sensing element
Upper side scanning
3-line CMOS Contact Image Sensor (CIS) - 掃瞄解像度
- 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
- 原稿尺寸
- A3 SEF, A4 SEF, A4 LEF, A5 SEF, A5 LEF, B4 SEF, B5 SEF, B5 LEF
- 自訂尺寸
- 10 x 10 mm—minimum
297 x 432 mm—maximum - 檔案類型
- TIFF, JPEG, PDF, High Compression PDF
- 影像濃度調節
- Automatic Density Adjustment; Manual—7 levels
- Fiery掃瞄
Scan resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400, 600 dpiScan speed—A4, 200 dpi
120 ipm—simplex
220 ipm—duplexScan area
297 x 432 mmOriginal size
A3, B4, A4, B5, A5, B6—auto
297 x 432 mm—custom paper sizeFile format
TIFF, JPEG, PDFScan type
Text/Line Art (default), Text, Text/Photo, Photo—black and white
Greyscale
Text/Photo, Glossy photo—colourSide
Single (default), Top/top, Top/bottomOrientation
Portrait (default), landscapeDestination
Hold queue (default), Mailbox, Email, FTP, Internet fax, SMB- 利用Fiery掃瞄至電子郵件
Registered email addresses in address book
1,000Maximum email addresses per send
24,000 KB—for total size of To and Cc recipients—address book
24,000 KB—for total size of To and Cc recipients—LDAPEmail to scan mode
Attachment
Attachment/URL—when a URL is specified, the email will be sent with the URL linked to the HDD of the Fiery server where the scanned data is storedFormat
TIFF, JPEG, PDF- 利用Fiery掃瞄至資料夾
FTP server
Server name or IP address, directory, and the port number can be configuredTimeout
30 seconds—configurable 0–999 secondsAuthentication
User name, password can be configuredProxy server setup
FTP server configuration is availableSMB setup
Network password and domain name can be configured- 其他掃瞄功能
SADF/batch mode, Mixed size mode
- 防止未經授權影印
- Copy and print
- 數據覆寫保安系統（DOSS）- 標準
- Yes
- 加密功能
- HDD, PDF, Secure print encryption
Address book, authentication password, Locked print password encryption
Encryption of PDF password for printing secure PDFs
Encryption of data sent via Scan to email (S/MIME)
Encryption of PDF transmission via Scan to email and Scan to folder - 認證
- 802.1x wired authentication
User authentication—Windows and LDAP via Kerberos, basic, user code
Network user authentication - 其他安全功能
IEEE 802.11i,w security
IPv6
Quota setting
Wi-Fi Protected Setup (WPS) support
SP Mode password change
DHCP option 60 and 77
Simple network security setting
IP filtering—access control
IPsec communication
Network protocol on/off
SNMPv3 support
S/MIME
SMTP over SSL communication for Scan to webmail
Secure Sockets Layer (SSL)
Transport Layer Security (TLS)
Mandatory security information print
PDF digital signature
Secure print
SSH port forwarding
Copy guard security
Copy data security unit—optional
- 其他支援系統
Fiery system requirements
Windows operating systems
These Windows versions (with latest service packs) are supported for printer drivers and Fiery applications:
Windows 7—32- and 64-bit
Windows 8.1—32- and 64-bit
Windows 10—32- and 64-bit
Windows Server 2008 R2—64-bit
Windows Server 2012—64-bit
Windows Server 2012 R2—64-bit
Windows Server 2016—64-bitNote: Fiery Job Monitor is not supported on 64-bit operating systems.
Macintosh operating systems
These Mac OS versions are supported for printer drivers:
Mac OS v10.11.x, v10.12.x, v10.13.x, v10.14.xNote: Hot Folders is only supported on Power PC G5 and Intel-based Mac OS computers.
HDD—for printing and utilities except Command WorkStation
Windows—1 GB free space available (2 GB recommended)
Mac OS X—500 MB free space available (1 GB recommended)Memory (RAM)—for printing and utilities except Command WorkStation
Windows—500 MB (2 GB recommended)
Mac OS X—500 MB (1 GB recommended)Networking protocols
Windows—TCP/IP
Mac OS X—TCP/IP, BonjourWebTools
Java-enabled Web browser:
Windows—Internet Explorer 11 or later, Firefox 48, Chrome 52, Microsoft Edge for client running Windows 10
Mac OS—Safari v8, v9.12, v10.10, Firefox 48, Chrome 52Note: On Mac OS, some versions of Firefox may not allow you to enter passwords into Configure. If this occurs, use Safari instead.
Command WorkStation
A monitor that supports 16-bit colour at a minimum resolution of 1,024 x 768 pixels
TCP/IP networking protocol installedWindows
1.0 GHz or greater Pentium 4 processor
1 GB RAM or moreMac OS
Intel processor that supports the version of Mac OS installed
4 GB RAM or moreSeeQuence (Impose and Compose) on Command WorkStation
In addition to requirements for Command WorkStation:
Licence activation for every client workstation
Acrobat/PitStop software
- 標準
- Device management and monitoring
@Remote
Web Image Monitor
Printer Driver Packager NX
Workflow solutions
Streamline NX v3
GlobalScan NX—Pro 8300S series
TotalFlow Production Manager
TotalFlow Prep
TotalFlow BatchBuilder
TotalFlow Supervisor
FusionPro VDP Creator
- 電源
- 220–240 V, 50/60 Hz, 16 Amps—mainframe
100–240 V, 50/60 Hz, 3 Amps—Fiery controller - 耗電量
- 2,840 W—maximum power
- 耗電量—選項
- 210 W—5,000-sheet LCT RT5130
324 W or less—4,400-sheet LCT RT5110
1,000 W or less excluding peak consumption—4,400-sheet Vacuum-Feed LCT RT5120
70 W—550-sheet Multi-Bypass Tray BY5020
67 W—3,000-sheet finisher SR5090
67 W—1,000-sheet Booklet finisher SR5100
15 W—Output Jogger Unit Type S11
150 W or less—1,000-sheet Finisher SR5110
150 W or less—1,000-sheet Booklet Finisher SR5120
250 W or less–maximum, 75 W or less–average—Trimmer Unit TR5050
20 W—Shift Sort Tray SH5000
95 W excluding peak consumption—Cover Interposer CI5040
30 W or less—Decurl Unit DU5070
240 W or less—Multi-Folding Unit FD5020
1.6 W—Energy Saver Mode (Sleep Mode)
150 W—EFI Fiery EB-35 - 典型用電量
- 11,979 Wh
- 預熱時間
- 300 seconds or less
- 聲功率級
Mainframe
61.5 dB—standby
73 dB—printingFull system
65.5 dB—standby
77 dB—printing- 排放水平
- 0.1 mg/h or less—benzene
4.0 mg/h or less—dust
4.0 mg/h or less—ozone
1.8 mg/h or less—styrene
2.0 mg/h or less—formaldehyde - 總揮發性有機化合物
- 18 mg/h—printing
2 mg/h—standby - 減少環境敏感材料
- 100% chrome-free steel plates—hexavalent chromium
100% lead-free solder used in PCBs—lead
0%—cadmium
0%—mercury
0%—PBB/PBDE - 節能標準
- Eco Declaration—declaration or application by a local sales company is required
- 安全標準
EN62368-1
IEC60950-1
IEC62368-1
CNS14336-1- 電磁兼容標準
EN62311
EN55022
EN55024
EN61000-3-2, EN61000-3-3
AS/NZS CISPR22
CNS13438- 塑膠成分識別
- All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
- 無線LAN標準
- EN301489-1
EN301489-17
AS/NZS 4268
LP0002
